Software

Switching

Support 802.1Q VLAN, VLAN based on MAC/IP subnet/protocol/stream, VLAN translation, PVLAN

Support port configuration, such as port speed, duplex mode, flow control, maximum transmission unit, and etc.

Support port speed limit, storm suppression, storm detection, and port statistics

Support port aggregation, static aggregation, dynamic aggregation LACP

Support MAC address aging and learning limitations, static MAC address binding

TSN

IEEE 802.1AS (generalized PTP, gPTP)

IEEE 802.1Qbu (Frame Preemption, FP)

IEEE 802.1Qbv (Time-Aware Shaper, TAS)

IEEE 802.1Qci (Per-Stream Filtering and Policing, PSFP)

IEEE 802.1CB (Frame Replication and Elimination for Reliability, FRER)

Redundancy

Support fast ring network MW-Ring private protocol

Support ERPSv1/v2

Support STP/RSTP/MSTP

Support loop back detection

Multicast

Support IGMP Snooping

Support multicast filtering

Security Management

Support HTTPS, SSH service control, HTTP/HTTPS, SNMP, TELNET/SSH access management

Support privilege level and port security

Support 802.1X port authentication, AAA authentication, radius, TACACS+ protocols

Support source IPv4/IPv6 protection and ARP protection

Support ACL and filters data from L2-L4 layers

Management and Maintenance

Support IEEE 1588v2 (Precision Time Protocol, PTP)

Support QoS, SP, DWRR queue scheduling

Support DHCPv6 clients, DHCPv4 clients/servers/listeners/relays

Support SNMPv1/v2c/v3, SNMP Trap v1/v2c/v3, RMON, LLDP, LLDP MED

Support port mirroring, DDM, Ping IPv4/IPv6, Traceroute IPv4/IPv6

Support user permission management, logging, NTP client, and daylight saving time

Support configuration file upload/download/activation/deletion, dual mirror backup, restart, and factory reset

Switch Capability

Processing Type

Store-and-Forward

Backplane Bandwidth

23Gbps

Buffer Size

1.25Mbit

Mac Address Table

8K

Interface

1G Fiber Port

2×1000Base-X SFP ports

1G Copper Port

6×10/100/1000Base-T(X) auto-sensing RJ45 ports, support full/half duplex and auto MDI/MDI-X

Relay

1 relay alarm output, 5.08mm pitch 3-pin terminal block

CONSOLE

1 console port with RS232 signal on a RJ45 connector, used for device debugging

Button

One-click restart or restore the factory settings

Indicator Light

Power indicator, operation indicator, alarm indicator, optical port indicator, TSN indicator light, ring indicator, TX port speed and connection/activity indicator

Power Supply

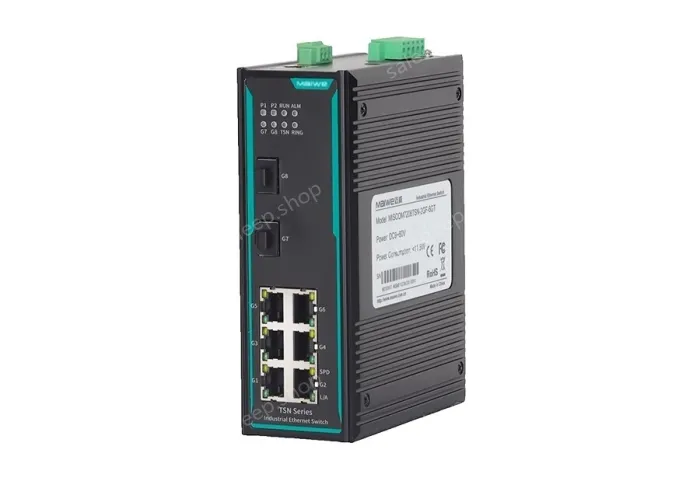

MISCOM7208TSN-2GF-6GT

MISCOM7208TSN-2GF-6GT-AD220

Input Voltage
