Software function

Switch Properties

Supports Rate limit, Trunking, flow control, VLAN, IEEE 802.1Q VLAN

Broadcast storm suppression

Redundancy Protocols

Support MW-Ring patent redundancy technique (failure recovery time <20ms)

Support MSTP/RSTP, EAPS

Multicast

IGMP Snooping

Support static multicast filtering

Routing

Support RIPv1/v2, RIPng, OSPFv1/v2,

Support PIM-SM, PIM-DM

Support static routing protocol

Service quality management

Supports SP and WRR queuing.

Support QoS setting

Management and maintenance

Supports CLI, Telnet and Web management methods,

Support SNMPv1/v2c

Supports IP/MAC address conflict alarm

Support power off, power alarm, port alarm

Support trunking

Support log viewing

Support Link-check and NTP
Support accept and transfer frame statistics

Technical parameters

Protocol Standard

IEEE802.3(Ethernet),

IEEE802.3u (100Base-TX&100Base-FX),

IEEE802.3x (Flow Control),

IEEE802.3ab (1000Base-T),

IEEE802.1(STP),

IEEE802.1w (RSTP),

IEEE802.1Q (VLAN),

IEEE802.1p (Priority),

IEEE802.1x(Visiting Control)

Switch capability

Priority Queues

8

VLAN Number

4096

multicast groups

256

MAC Table Size

16K

Backplane bandwidth

24Gbps

Switch Delay

<5μs

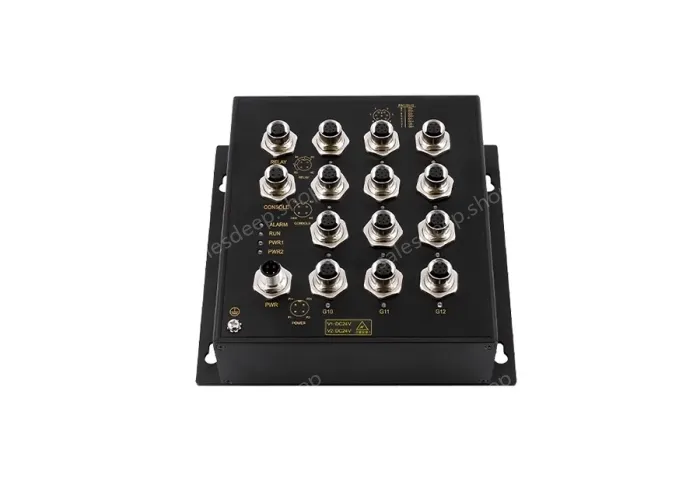

Interface

Gigabit ports

Port numbers:12

Interface type: M12

Baud rate: 10/100/1000MBase-TX Self-adaption.

Console port

RS232, M12 interface

Terminal block for power input

M12 terminal

LED Indicator Light

Back panel LED lights

Interface indicator light: LINK/ACT; SPEED

Power indicator light: PWR

Communication distance

Twisted-pair

100m(CAT5/CAT5e cable)
