Software | |||||||||||||||||||||||||||||||||||||||||||||||
Switching | Support port configuration, port rate limiting, storm suppression, storm detection, static port aggregation, and LACP Support 802.1Q VLAN for VLAN segmentation and provides options for segmentation based on port, MAC address, subnet, and protocol. It also support GVRP and port isolation Feature MAC address aging, static MAC address forwarding and filtering, as well as MAC address binding and learning restrictions | ||||||||||||||||||||||||||||||||||||||||||||||
Redundancy | Supports MW-RingV2 private ring network technology. Supports EAPS, ERPS Supports STP, RSTP, and MSTP | ||||||||||||||||||||||||||||||||||||||||||||||
Multicast | Support MW-RingV2 private ring network technology Support EAPS, ERPS Support STP/RSTP/MSTP | ||||||||||||||||||||||||||||||||||||||||||||||
Routing | Support static routing Support dynamic routing protocols including RIPv1/v2 and OSPF Support VRRP | ||||||||||||||||||||||||||||||||||||||||||||||
Security Management | Support access methods such as HTTP, HTTPS, TELNET, and SSH for configuring and managing the device remotely. Support ACL for filtering data at Layer 2 to Layer 4 based on source/destination IP and MAC addresses, as well as other criteria. Support 802.1X port authentication and MAC address authentication for controlling access and ensuring security. Support loopback detection and alarms for identifying and alerting network loop issues | ||||||||||||||||||||||||||||||||||||||||||||||
Management and Maintenance | Support DHCP in various roles including Client, Server, Relay, and Snooping for IP address management Provide QoS features for prioritizing and managing the transmission of voice, video, and critical data to resolve network congestion Support SNMP versions 1, 2c, and 3, as well as SNMP traps for network monitoring and management. It also supports LLDP for discovering and monitoring neighboring devices Offer port mirroring, Ping, and Tracert functionalities for network troubleshooting and monitoring Provide user access control and management, system logs, synchronization of local time settings, and SNTP for network time synchronization Support online restart, factory reset, system upgrades, and configuration file upload/download Offer centralized management through unified upper-level software | ||||||||||||||||||||||||||||||||||||||||||||||
Switch Capability | |||||||||||||||||||||||||||||||||||||||||||||||
Processing Type | Store-and-Forward | ||||||||||||||||||||||||||||||||||||||||||||||
Backplane Bandwidth | 24Gbps | ||||||||||||||||||||||||||||||||||||||||||||||
Buffer Size | 3Mbit | ||||||||||||||||||||||||||||||||||||||||||||||
MAC Table Size | 16K | ||||||||||||||||||||||||||||||||||||||||||||||
Interface | |||||||||||||||||||||||||||||||||||||||||||||||

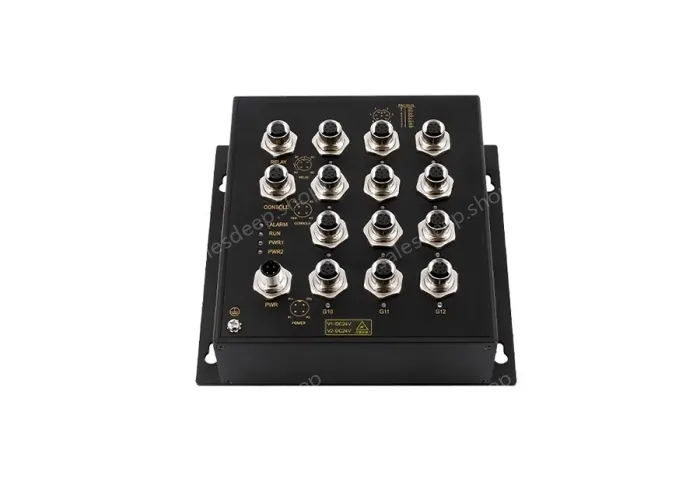

1G Copper Port | 12*10/100/1000Base-T(X) with auto-sensing copper ports Utilize M12 (A-Code 8-Pin Female) connectors Support both full-duplex and half-duplex communication modes Auto MDI/MDI-X | ||||||||||||||||||||||||||||||||||||||||||||||
Relay | 1 relay alarm output with an M12 (A-Code 4-Pin Female) port | ||||||||||||||||||||||||||||||||||||||||||||||
CONSOLE | 1 CONSOLE port, RS232 signal M12(A-Code 4-Pin Female) connector , used for device debugging and command-line configuration | ||||||||||||||||||||||||||||||||||||||||||||||
Status LED | Power indicator, Operation indicator, Alarm indicator, Port indicator | ||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | |||||||||||||||||||||||||||||||||||||||||||||||
Input Voltage | DC18~36V, DC36~72V or DC50~160V(optional) | ||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | ＜15W(full load) | ||||||||||||||||||||||||||||||||||||||||||||||
Connection | M12 (A-Code 4-Pin Male) port | ||||||||||||||||||||||||||||||||||||||||||||||
Physical Characteristics | |||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 180×170×50.5 mm | ||||||||||||||||||||||||||||||||||||||||||||||
Software Switching Support port configuration, port rate limiting, storm suppression, storm detection, static port aggregation, and LACP Support 802.1Q VLAN for VLAN segmentation and provides options for segmentation based on port, MAC address, subnet, and protocol. It also support GVRP and port isolation Feature MAC address aging, static MAC address forwarding and filtering, as well as MAC address binding and learning restrictions Redundancy Supports MW-RingV2 private ring network technology. Supports EAPS, ERPS Supports STP, RSTP, and MSTP Multicast Support MW-RingV2 private ring network technology Support EAPS, ERPS Support STP/RSTP/MSTP Routing Support static routing Support dynamic routing protocols including RIPv1/v2 and OSPF Support VRRP Security Management Support access methods such as HTTP, HTTPS, TELNET, and SSH for configuring and managing the device remotely. Support ACL for filtering data at Layer 2 to Layer 4 based on source/destination IP and MAC addresses, as well as other criteria. Support 802.1X port authentication and MAC address authentication for controlling access and ensuring security. Support loopback detection and alarms for identifying and alerting network loop issues Management and Maintenance Support DHCP in various roles including Client, Server, Relay, and Snooping for IP address management Provide QoS features for prioritizing and managing the transmission of voice, video, and critical data to resolve network congestion Support SNMP versions 1, 2c, and 3, as well as SNMP traps for network monitoring and management. It also supports LLDP for discovering and monitoring neighboring devices Offer port mirroring, Ping, and Tracert functionalities for network troubleshooting and monitoring Provide user access control and management, system logs, synchronization of local time settings, and SNTP for network time synchronization Support online restart, factory reset, system upgrades, and configuration file upload/download Offer centralized management through unified upper-level software Switch Capability Processing Type Store-and-Forward Backplane Bandwidth 24Gbps Buffer Size 3Mbit MAC Table Size 16K Interface 1G Copper Port 12*10/100/1000Base-T(X) with auto-sensing copper ports Utilize M12 (A-Code 8-Pin Female) connectors Support both full-duplex and half-duplex communication modes Auto MDI/MDI-X Relay 1 relay alarm output with an M12 (A-Code 4-Pin Female) port CONSOLE 1 CONSOLE port, RS232 signal M12(A-Code 4-Pin Female) connector , used for device debugging and command-line configuration Status LED Power indicator, Operation indicator, Alarm indicator, Port indicator Power Supply Input Voltage DC18~36V, DC36~72V or DC50~160V(optional) Power Consumption ＜15W(full load) Connection M12 (A-Code 4-Pin Male) port Physical Characteristics Dimensions 180×170×50.5 mm Picks for you 8pcs RJ45+2pcs SFP POE Gigabit Ethernet switch 2990 reviews 0 sold ★ 5.0 16-port Gigabit Ethernet switch 7433 reviews 0 sold ★ 5.0 24 port switch 7603 reviews 0 sold ★ 5.0 8 port Layer 2 manages industrial switches 958 reviews 0 sold ★ 5.0 L3 Managed Switch 10 Base-T Ethernet ports,2 SFP ports 7278 reviews 0 sold ★ 5.0 UOTEK 10/100M 8-Port Industrial Ethernet Switch 5053 reviews 0 sold ★ 5.0 OTEK UT-65208F Series Managed Industrial Ethernet Switch with Serial Ports 9973 reviews 0 sold ★ 5.0 UOTEK UT-6406GM serial 4 Electrical Ports + 2 Optical Ports Full Gigabit Managed Ethernet Switch 4944 reviews 0 sold ★ 5.0 8 Ports Gigabit Combo + 4 Ports Gigabit SFP + 16 Gigabit T(x) Ports Rack-mount Managed Industrial Ethernet Switch 2544 reviews 0 sold ★ 5.0 [4 Gigabit + 24 Gigabit Battery] managed industrial switch 3800 reviews 0 sold ★ 5.0 4 Ports Gigabit Combo + 24 Ports 10/100M T(x) Rack-mount Unmanaged Industrial Ethernet Switch 7788 reviews 0 sold ★ 5.0 5 Ports Gigabit T(x) Din-Rail Unmanaged Industrial Ethernet Switch 9280 reviews 0 sold ★ 5.0 Subscribe | |||||||||||||||||||||||||||||||||||||||||||||||
