Software | |
Switching | Support port configuration, port rate limiting, storm suppression, storm detection, static port aggregation, and LACP. Support 802.1Q VLAN, VLAN partitioning based on port, MAC address, subnet, and protocol, GVRP, and port isolation. Support MAC address aging, static MAC address forwarding and filtering, and MAC address binding with learning restrictions |
Redundancy | Support MW-RingV2 private ring network technology Support EAPS and ERPS Support STP, RSTP, and MSTP |
Multicast | Support IGMPv1/v2/v3 and IGMP Snooping Support static multicast with GMRP Support PIM-DM (Protocol Independent Multicast - Dense Mode) and PIM-SM (Protocol Independent Multicast - Sparse Mode) |
Routing | Support static routing Support RIPv1/v2 and OSPF dynamic routing protocols Support VRRP |
Security Management | Support HTTP, HTTPS, TELNET, and SSH access methods Support ACL (Access Control List) for filtering data at Layers 2 to 4 Support 802.1X port authentication and MAC address authentication Support loopback detection and alarms |
Management and Maintenance | Support DHCP Client/Server/Relay/Snooping Support QoS (Quality of Service), SNMP v1/v2c/v3, SNMPv1/v2c Traps, and LLDP Support port mirroring, Ping, and Tracert Support user access control, system logs, local time setting synchronization, and SNTP network time synchronization Support online reboot, factory reset, system upgrade, and configuration file upload/download Support centralized management through unified upper-level software |
Switch Capability | |
Processing Type | Store-and-Forward |
Backplane Bandwidth | 128Gbps |
Buffer Size | 12Mbit |
MAC Table Size | 16K |
Interface | |

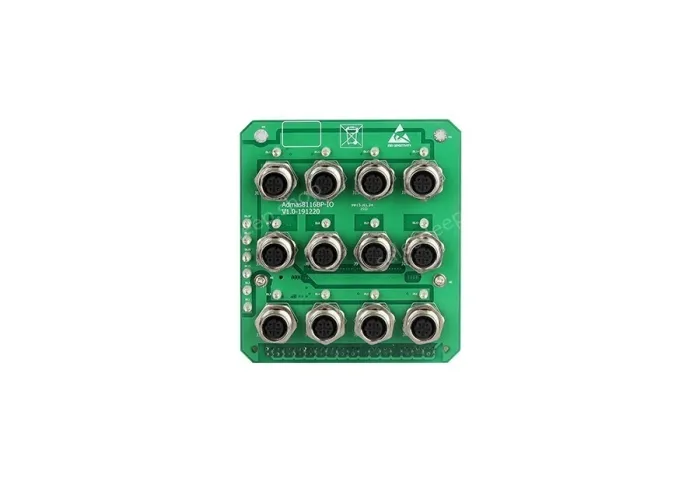

1G Copper Port | 4*10/100/1000Base-T(X) auto-sensing copper ports, using M12 (X-Code 8-Pin Female) port, supporting full/half duplex, auto MDI/MDI-X. It supports two sets of Bypass functions, where Port 1 and Port 2 form one set of Bypass, and Port 3 and Port 4 form another set of Bypass |
100M Copper Port | 12*10/100Base-T(X) auto-sensing Copper ports, 8*M12 (D-Code 4-Pin Female) ports, and 4 ports are led out through the backplane. support full/half duplex and auto MDI/MDI-X |
CONSOLE | 1 CONSOLE port, RS232 signal RJ45 port, used for device debugging and command-line configuration |
Status LED | Power indicator, Operation indicator, Port indicator |
Power Supply | |
Input Voltage | DC24V |
Power Consumption | ＜10W(full load) |
Connection | 09062486826 (Harting Connector Bent Socket) |
Physical Characteristics | |
Dimensions | 157×104×116.5 mm (the panel excluded) |
Installations | Slide in |
Weight | 0.65kg |
